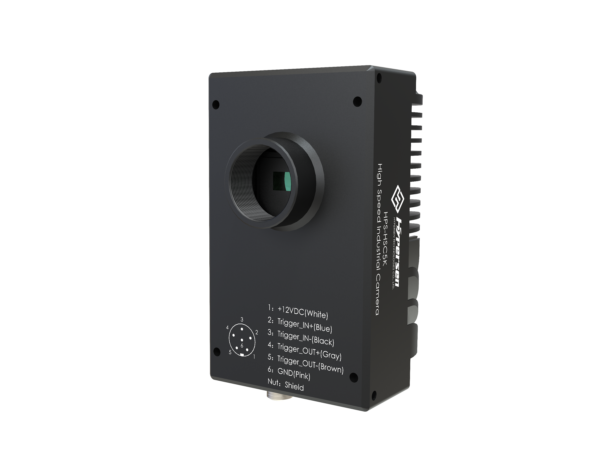

HPS-HSC5K / High Speed Industrial Camera / HYPERSEN


– Ultra-high-speed image acquisition system

– 150fps @5120*5120 8 bit

– 240fps @3200*3200 8 bit

– Standard C-mouth

– 40G Optical fiber ultra-high-speed transmission

– Complete SDK and software support

Technical parameters

Model HPS-HSC5K Resolution 5120×5120(Pixel:2.5μmx2.5μm)
Sensor format 1.1 ” (12.8mm x 12.8mm) Continuous data transfer rate 150 fps @25 megapixel, 8 bit;

240 fps @10 megapixel, 8 bit

Dynamic range 61.4dB@10 bit Shutter mode Global shutter,

support automatic exposure,

external trigger exposure,

software trigger exposure, etc.

Integrated image processing module FPN denoising, PRNU correction,

gamma correction, lens correction,

ROI, gain adjustment,H/V Binning,

horizontal and vertical inverted readout, etc.

Data interface 40G Ethernet fiber interface
Digital I/O 1 isolated trigger input,

1 isolated trigger output

Data Format Mono 8/10 bit
Power supply and consumption Power supply voltage: 12VDC,

Typical power consumption: 13W

Temperature Operating temperature 0~45℃,

Storage temperature -20~60℃

Humidity Operating humidity 10 to 80%


Storage humidity 10 to 80%

Weight 440g

Application field

High-speed fluid analysis

Machine vision

Material measurement and calculation

High-speed motion detection

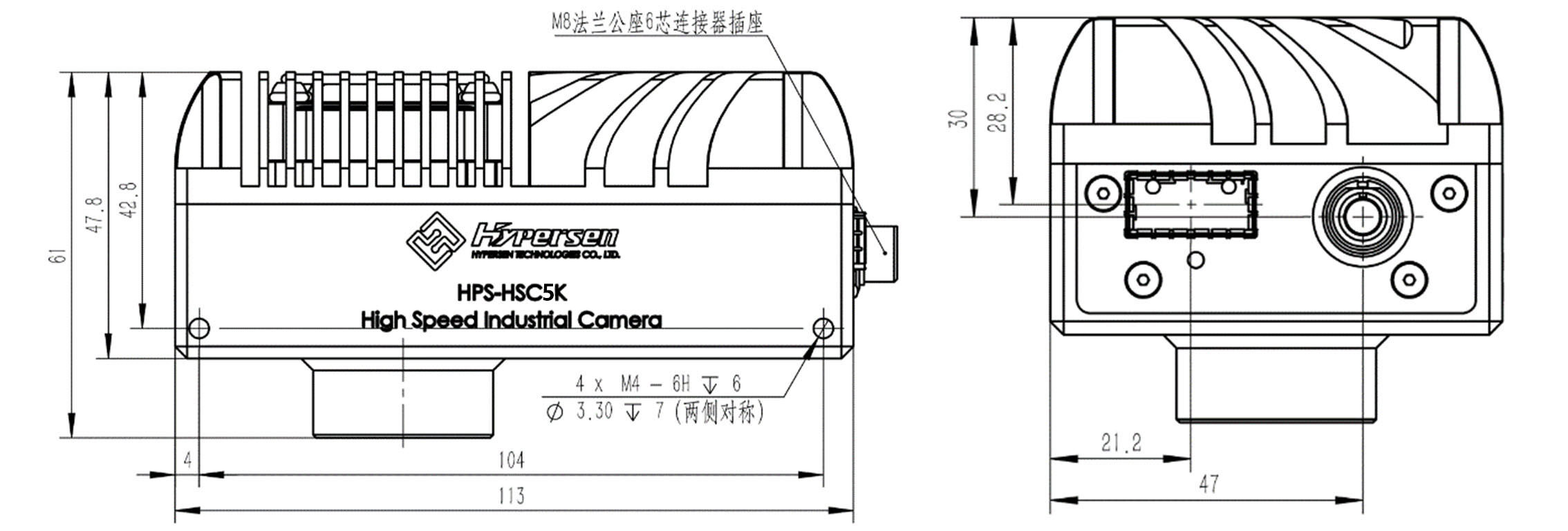

Product size
