HPS-CFL007 / Chromatic Confocal Sensor / Displacement Sensor / HYPERSEN


– Non-contact displacement sensor with accuracy up to nanometer level

– Stable measurement of metal/ceramic/mirror/glass and other materials

– Large measuring Angle, suitable for all kinds of working morphologies (deep hole, bevel, camber, etc.)

– Fast detection speed

– Suitable for high temperature and high pressure operation environment

Technical parameters

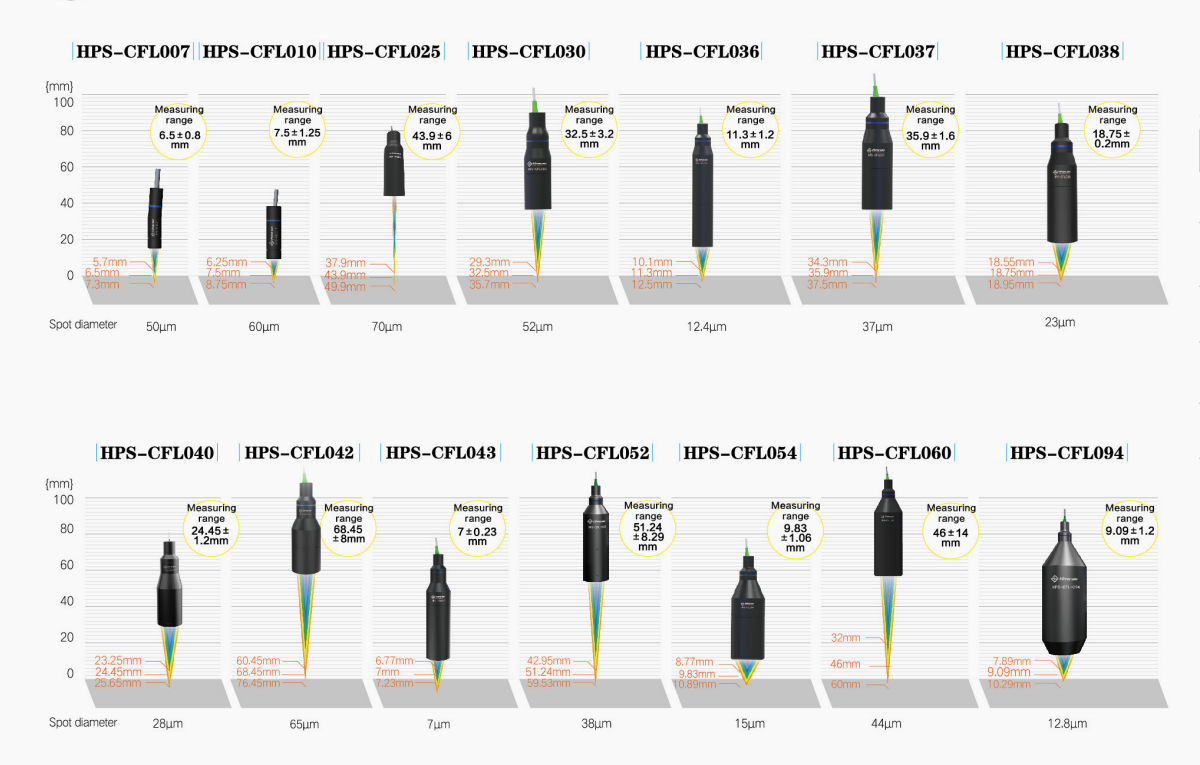

Model HPS-CFL007 Reference distance① 6.5mm
Measuring range ±0.8mm Linearity error 3.2um
Static repeatability② 0.27um Measuring angle ±10°
Spot diameter (Large) 50μm Spot diameter (Small) 10μm
IP protection IP52 (Standard Level),IP65(Bookable) Environment temperature -40~+85℃
Material Aluminum 6061 Optical fiber length 3m(Standard); 5m/10m(Optional)
Weight 42g Outer diameter 7mm

*① This is the value from the lens structure surface to the center point of the lens measurement range.

*② This value is a 3σ value, which is obtained by measuring the tungsten steel standard gauge block on the optical platform in our company’s dust-free laboratory. The number of samples: 200000; integration time: 400us; light signal intensity (manually adjusted): 50%; moving average filter window size: 128.

*All technical specifications shall be subject to the latest official product datasheet.

*Hypersen Technologies reserves the right of final interpretation.


Application field

Precision hardware measurement

Lithium battery defects detection

Glue/Film Inspection

Wafer inspection

PCB/IC chip inspection

Glass/Lens measurement

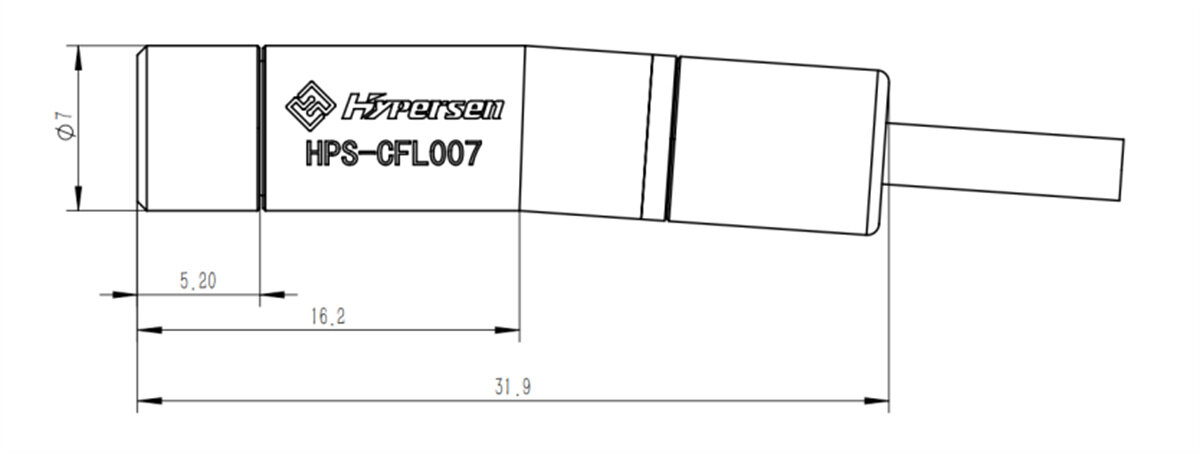

Product size
