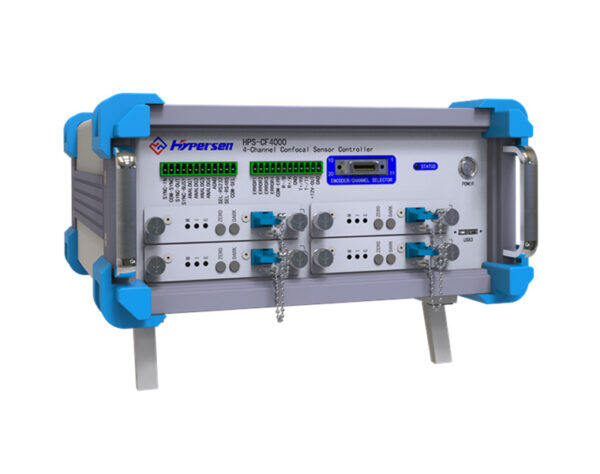

HPS-CF4000 / Chromatic Confocal Sensor / Displacement Sensor / HYPERSEN


– High-performance chromatic confocal sensor controller with 4 channels

– Fit for curved,uneven and rough surfaces

– Fit for whole series of Hypersen’s chromatic sonfocal sensor heads

– Support Hypersen Confocal Studio Client for professional measurement

– High-speed measurement: 6300Hz/s

– Complete SDK for customers’ secondary development

Technical parameters

Model HPS-CF4000 Communication interface IO/USB3.0/RS-232/485/422/ANALOG
Current and voltage 100V~240V AC  50/60Hz; 0.1A Type of light source White LED
Number of measurement channels 4 Sampling rate Single channel:6.3kHz

Four channels:1.8kHz

Power Typical value 10W Operating temperature -20 ~ +60°C
Weight 6000g Size 284*259*132mm

Application field

Precision hardware measurement

Lithium battery defects detection

Glue/Film Inspection

Wafer inspection

PCB/IC chip inspection

Glass/Lens measurement

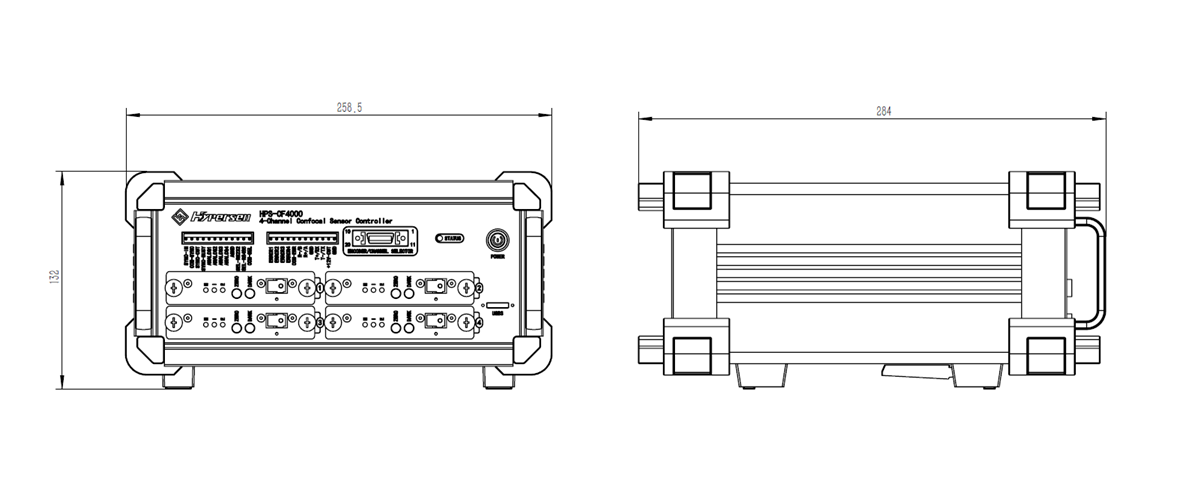

Product size
