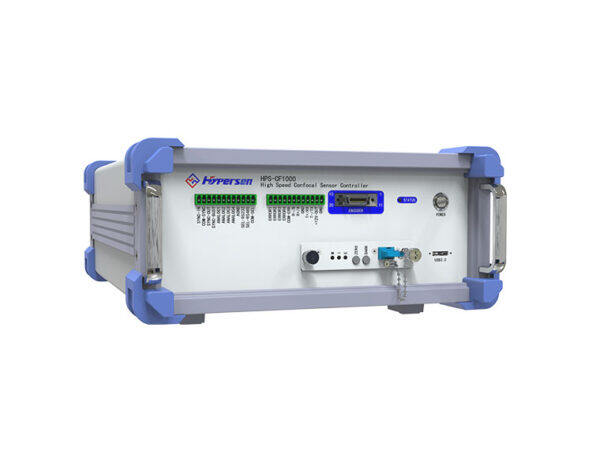

HPS-CF1000 / Chromatic Confocal Sensor / Displacement Sensor / HYPERSEN


– High-performance Chromatic Confocal Controller with the highest measuring speed

– Fit for curved,uneven and rough surfaces

– Fit for whole series of Hypersen’s chromatic sonfocal sensor heads

– Support Hypersen Confocal Studio Client for professional measurement

– High-speed measurement: 72000Hz/s

– Complete SDK for customers’ secondary development

Technical parameters

Model HPS-CF1000 Communication interface USB3.0/RS-232/485/422/ANALOG/IO
Current and voltage 100V~240V AC  50/60Hz;0.1A Type of light source White LED
Number of measurement channels 1 Sampling rate 72kHz
Power Typical value 30W Operating temperature -20 ~ +60°C
Weight 7500g Size 394*278*132mm

Application field

Precision hardware measurement

Lithium battery defects detection

Glue/Film Inspection

Wafer inspection

PCB/IC chip inspection

Glass/Lens measurement

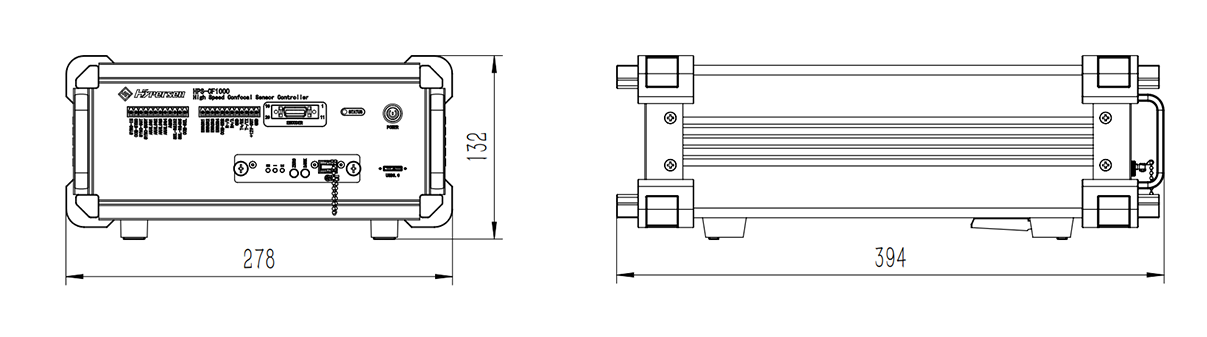

Product size
