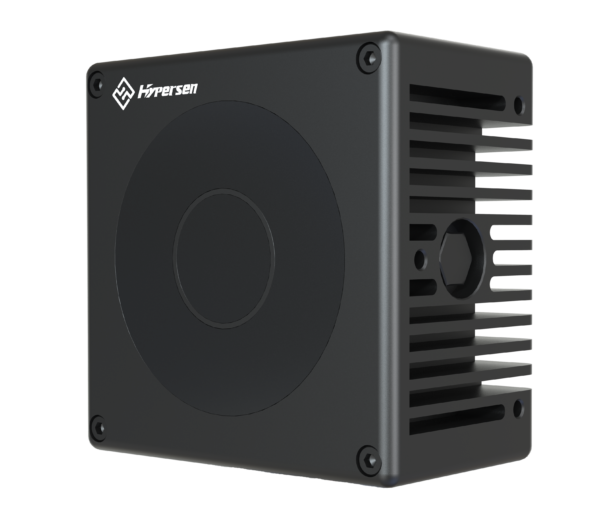

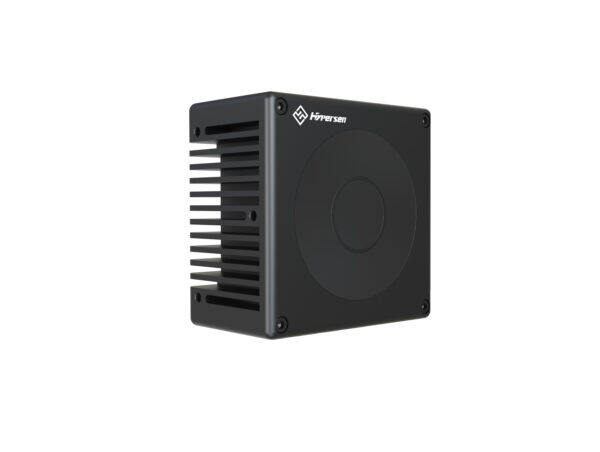

HPS-3D640 / 3D Solid-state LiDAR / 3D TOF Ranging Sensor / HYPERSEN


– 68° x 55° FOV

– 640 x 480 resolution

– High SNR digital output

– Available with LAN communication

– Measuring range up to 5m*

– Optional point-cloud and object coordinate output

– Built-in data processing and filtering algorithms.

– Solid-state design, IP67 protection.

– Output point cloud map, depth map, support obstacle coordinate extraction

Technical parameters

Model HPS-3D640 Size 88 x 82x 49(W*D*H) mm
Weight 440  g Power supply 12 ~ 24 V
Power consumption 5-8W Strong light performance 80,000 Lux
Storage temperature -40 ~ 85℃ Operating temperature -10 ~ 55℃
Wave length 850 nm Emitting angle 68 °(Horizontal)x 55 °(Vertical)
Precision ± 1cm Measuring range 0.25~2m @10% reflectivity,

0.25~5m @90% reflectivity

Operating mode Auto-HDR
Output data Depth data, average distance, signal strength,
Number of weak signal pixels, number of saturated pixels,
maximum distance, minimum distance
Frame rate 25Hz/adjustable Power-on initialization time 1500 ms
Communication interface LAN Optocoupler isolationI/O Standard: 1 input, 1 output

Application field

Automatic Door Area Trigger Control

Smart Transportation

Service Robot Collision Avoidance

People counting

Safety Area Protection

AGV Collision Avoidance

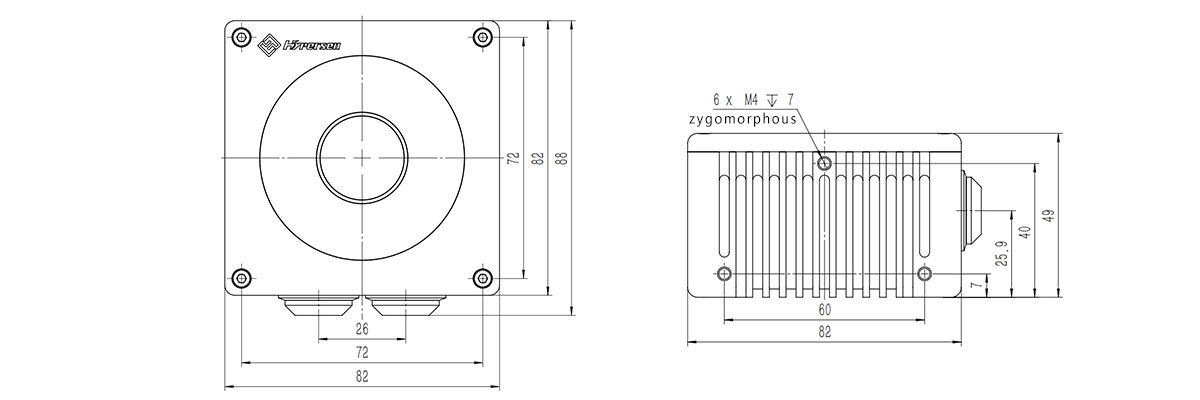

Product size
