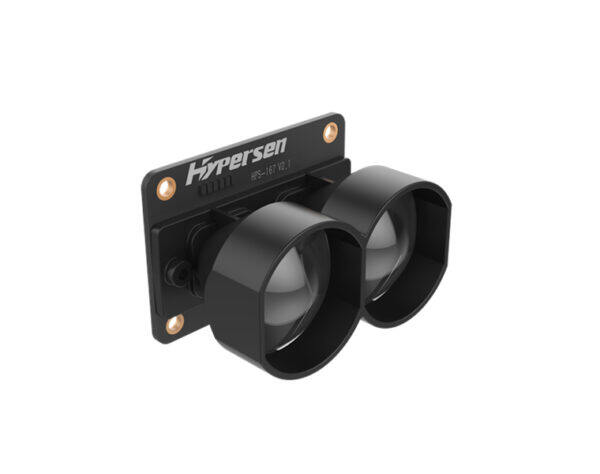

Time-of-Flight (ToF) infrared ranging sensor
6.8g ultra light weight
High SNR
Fast and accurate distance ranging
Intergrated ambient light, temperature and color compensation algorithms
6-54Hz adaptive output data rate

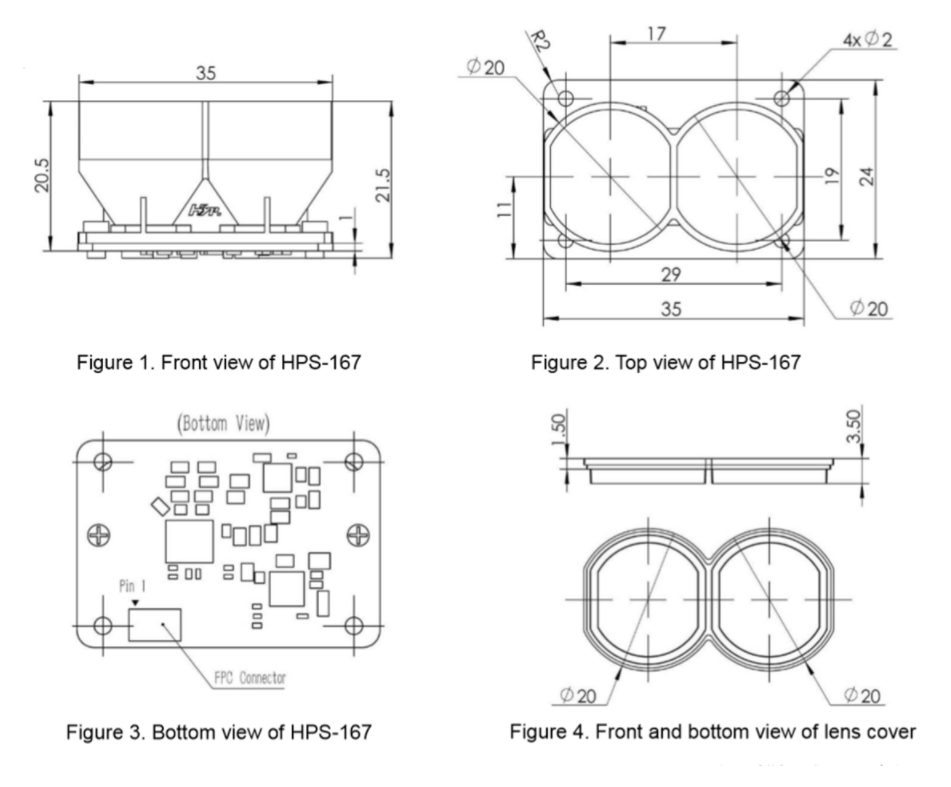

Model | HPS-167 | Size | 35x 24x 21.5 mm |
Weight | 8.0 g | Power supply | 4 ~ 6 V |
Maximum power consumption | 1.3W | Quiescent power consumption | 0.1W |
Storage temperature | -40 ~ 85 ℃ | Operating temperature | -10 ~ 55 ℃ |
Emmiter | Infrared LED | Emitting angle | ±1.8 ° |
Maximum measuring distance | 18 m | Minimum measuring distance | 0.08 m |
Waterproof | Lens cone waterproof | Adaptive data output rate | 6 ~ 54 Hz |
Output data | Distance, accuracy, signal strength, ambient IR level, temperature | Communication interface | TTL UART |
