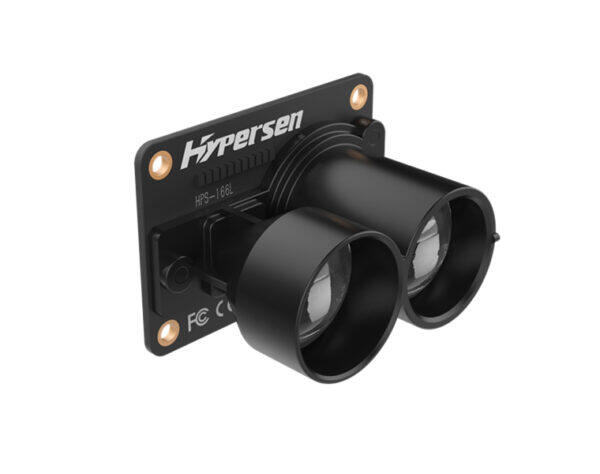

HPS-166-L / ToF Ranging Sensor / HYPERSEN


Time-of-Flight (ToF) infrared ranging sensor

6.8g ultra light weight

High SNR

Fast and accurate distance ranging

Intergrated ambient light, temperature and color compensation algorithms

6-54Hz adaptive output data rate

Technical parameters

Model HPS-166-L Size 34x 24x 22 mm
Weight 6.8g Power supply 4 ~ 6 V
Maximum power consumption 1.3W Quiescent power consumption 0.1W
Storage temperature -40 ~ 85 ℃ Operating temperature -10 ~ 55 ℃
Emmiter VCSEL Laser Emitting angle ±1.8 °
Maximum measuring distance 25 m Minimum measuring distance 0.08 m
Waterproof Lens cone waterproof Adaptive data output rate 6 ~ 54 Hz
Output data Distance, accuracy, signal strength, ambient IR level, temperature Communication interface TTL UART

Application field

Empty Bay Detection

Height Difference Measurement


Drone Collision Avoidance

Drone Soft-landing

Drone Altitude Holding

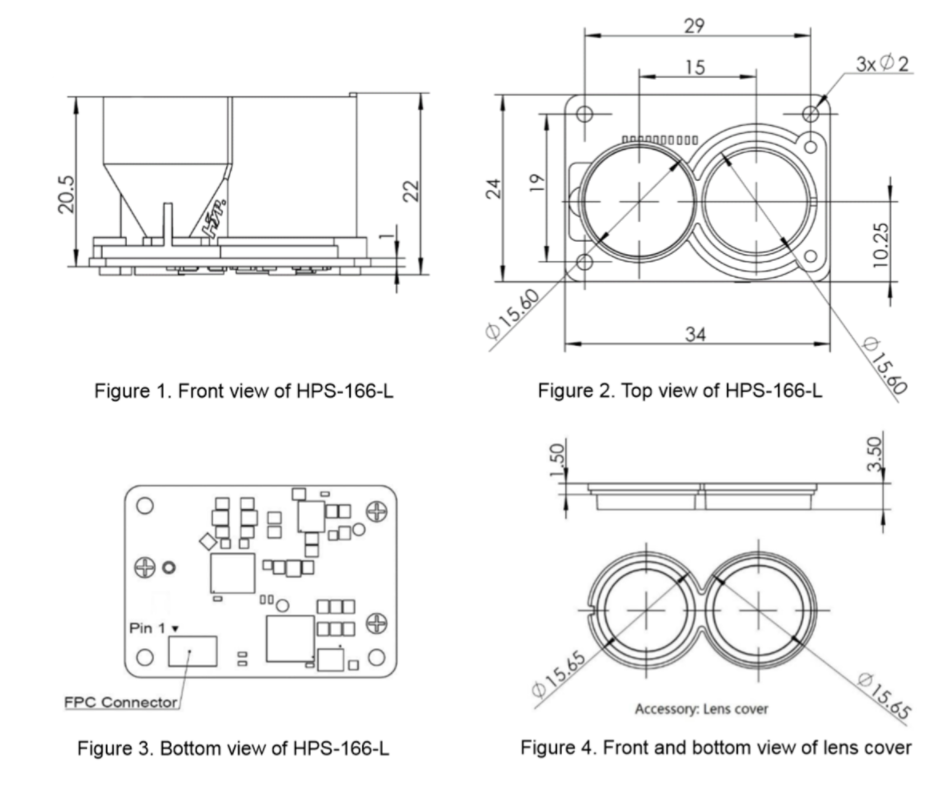

Product size
