3D Line Confocal Sensor HPS-LCF2000


– Suitable for 3D inspection of transparent, mirrored and highly reflective materials

– Can record detailed raw data and generate various forms of 2D/3D graphs

– 2048 points/profile; 0.2μm Z-axis repeatability

– Ultra-high-speed scanning: 35000 lines/sec

– Complete SDK and one-stop software support service

– Applied in industrial precision measurement and scientific research

Technical parameters

Model HPS-LCF2000 Field of View (mm) 6
Measurement range (mm) 2.4 X-resolution (μm) 2.9
Z-repeatability① (μm) 0.2 Max. scan rate② (Hz) 35000
Number of data points/X 2048 Scan rate of full measurement range ③(Hz) 5000
Stand-off distance (mm) 19 Max. surface slope on mirror (deg) ±15
Dimensions (H*W*D) (mm) 276*341.1*75.5 Weight (kg) 8
Ingress protection level (EN 60529) IP55 Power 24 VDC,2A
PC Connectivity 40G光纤 Digital input Optocoupler input and output

*①This value is a 3σ value, which is obtained by measuring the mirror standard gauge block on the optical platform in our company’s dust-free laboratory. The number of contours: 200,000; Integration time: 200us; Light signal intensity (Manually adjusted): 20%.

*②The measurement range under this scanning rate is 1/8 of the full range.

*③The number of scanning points in X direction at this rate is 1,024, while the scan rate of full measurement range (2,048 points) is 2,400Hz.

*All technical specifications are subject to the latest official datasheet. Hypersen reserves the right for final interpretation.

Application field

3D topography measurement

Surface defects detection

Gap and flush measurement

Curved contour scanning

Step height measurement

Impurity and air bubble inspection

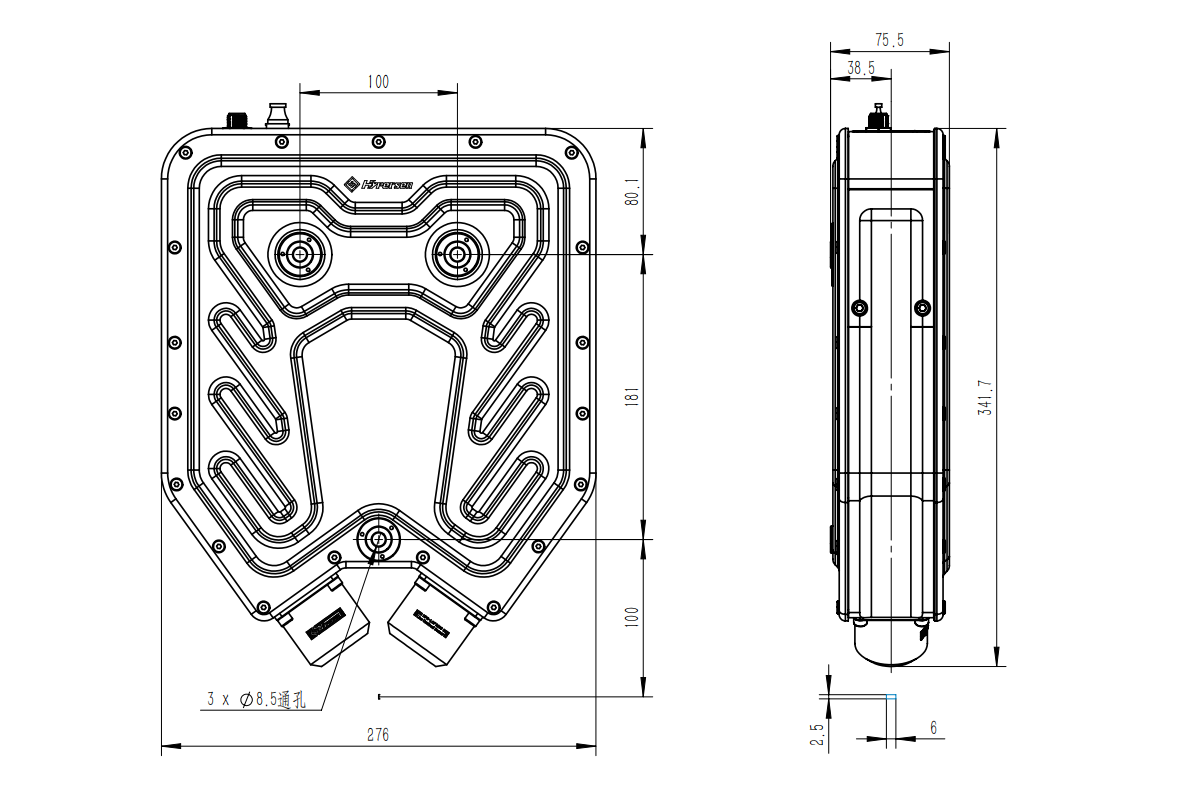

Product size
